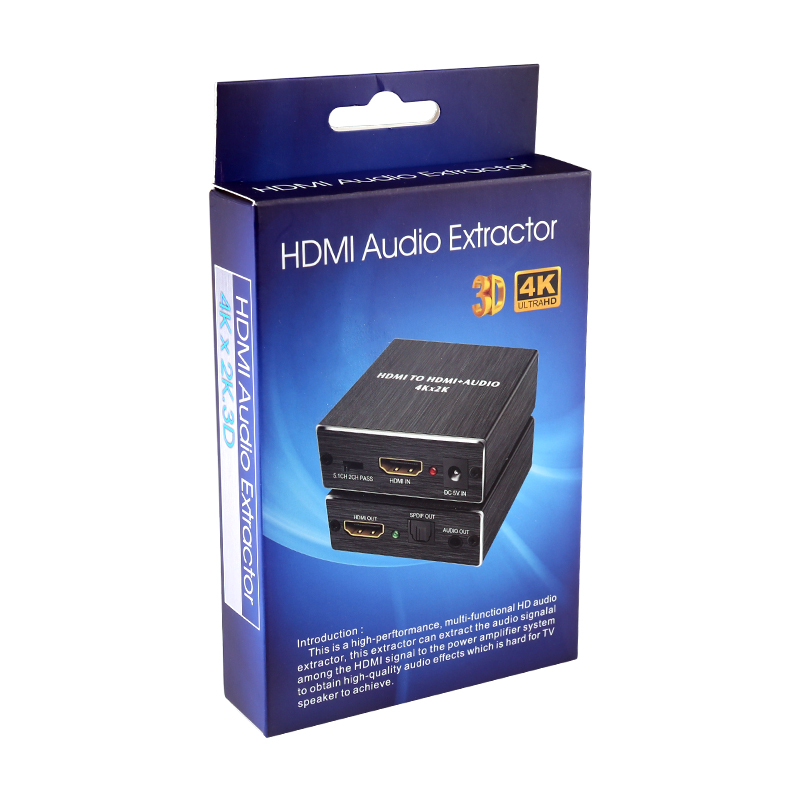

HDMI to HDMI Audio Extractor 4K x 2K Converter Splitter.

Descrition:
This 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.

Features:
- Three switing audio EDID settings.
- 5.1CH Mode: Extract 5.1 dolby digital / DTS and output via HDMI/ SPDIF.
- HDMI pass mode: The audio and video can be convertered from the HDMI output. SPDIF and L/R will not output any sound.
- 2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio.

Specifications:
1. Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
2. Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
3. HDMI resolution: 4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
4. Support video color format: 24bit/deep color 30bit/36bit
5. Gender: Female - Female
6. Max bandwidth: 225MHz
7. Max baud rate: 6.75Gbps
8. Max working current: 190mA
9. Weight: 100g
10. Package: Retail package(picture for reference only)

Kindly Note:
1. Not support dolby digital plus audio, it is support DTS audio and dolby digital audio.
2. USB power - For devices with low power HDMI ports, the power adapter(Not including) can use the phone adapter(5V/1A).
3. Not support copyright protected content.

Package Included:
1 x HDMI Audio Extractor
1 x Micro USB Cable
